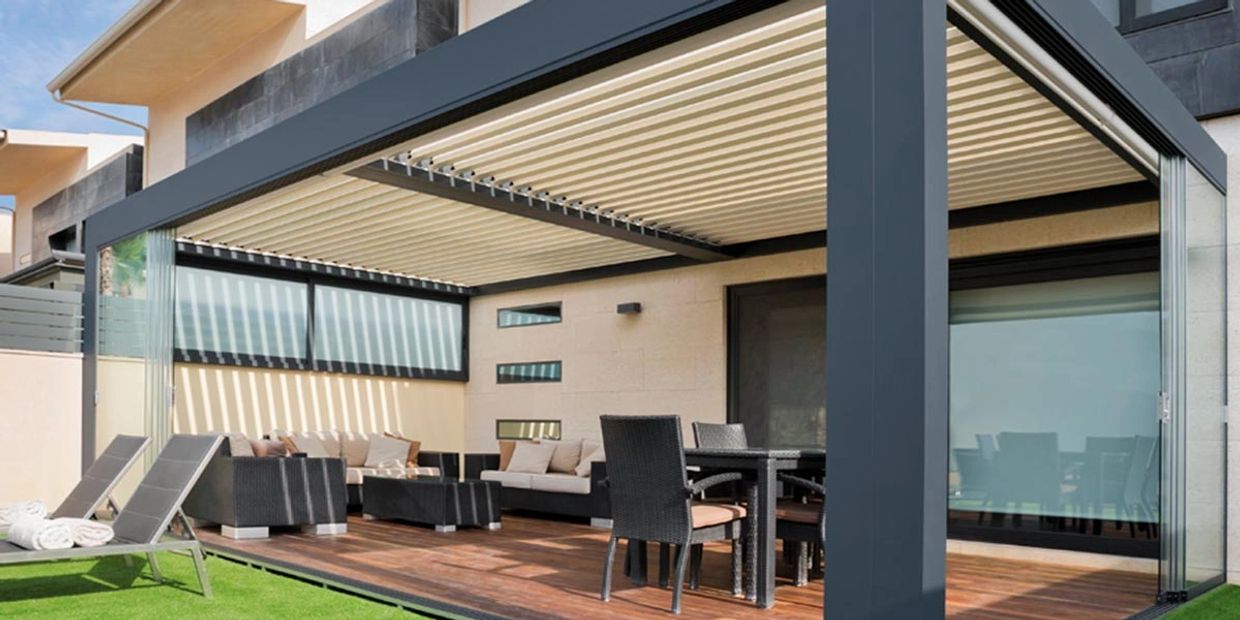

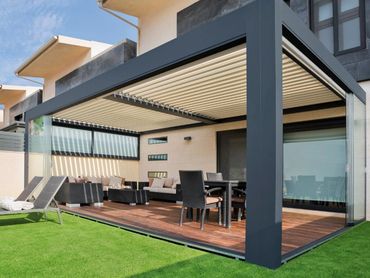

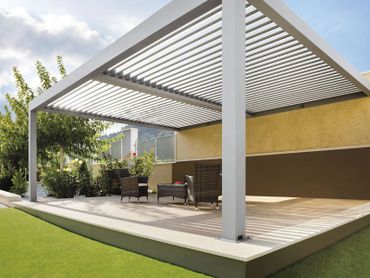

Bioclimatic Pergolas
Characteristics
Breathable, watertight cover

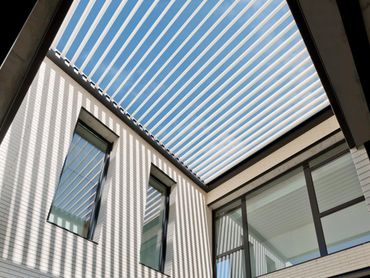

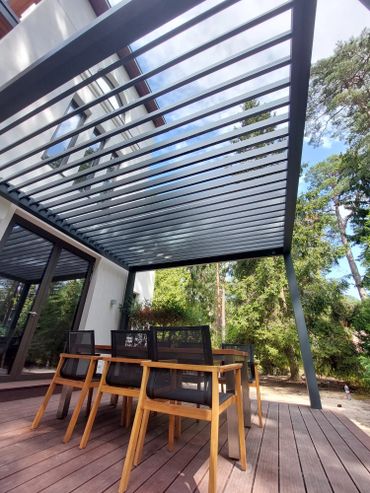

Orientable slats, from 0° to 135°.

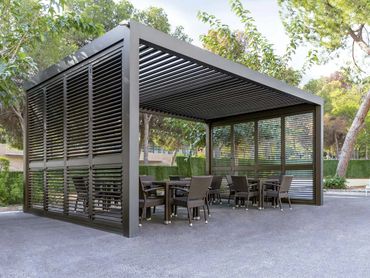

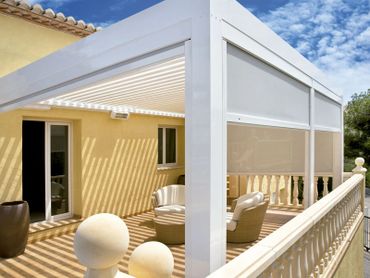

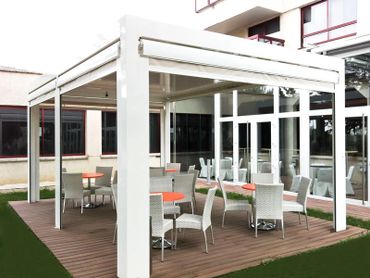

Different mounting types
Tailored manufacturing.
Working slat dimensions
165x40 mm
Maximum dimensions
(type 4 columns)
High: 3,000 mm, wide: 4,200 mm, long: 6,200 mm.
Registered perimeter sealing system against sideways rain and vibration due to gusts of wind
Channeling of rainwater
Free-flow drainage or slab channeling.
Safety
Hidden drains and electrical lines.
Materials
6063 T5 aluminium, stainless steel and polyacetal (POM).
Motorised operation
A 24Vdc motor (low voltage) provides better safety against electric shock. Additional earthing protection.
Finishes
In accordance with specifications for Qualicoat, Qualideco and Qualanod. RAL colour, anodized or wood effect finishes are available.
A registered system that works against sideways rain and prevents direct and/or reflected light from going through the joints between the slats and the frame.
Watertight system
There is a rubber sealing integrated into the slats, which ensures the watertightness of the pergola, since it does not allow water into the joints between slats.
At the same time, it cancels the noise created between the slats due to the vibration caused by wind.
Motorised operation
The pergola can be operated only by motorisation, using a 24 Vdc motor. This will also ensure your safety against electric shock, with the additional safety of earthing protection.
The motorised element is discretely hidden between the slats and the frame, promoting the beauty of the pergola.
